Offline Fine Filter 27/-/AL

CJC Offline Fine Filters 27/108 are fine filters (filtration degree 3 down to 1 micron), which simultaneously remove particles, water, oil ageing products and acid compounds from oil with high efficiency. Due to the combination of filtration type (depth filtration) and filter material (cellulose), CJC Offline Fine Filters 27/-/AL offer an extremely high dirt and water holding capacity.

CJC Fine Filter Inserts made of cellulose are specially designed and optimized for various applications. CJC Fine Filter Inserts for CJC Offline Fine Filters 27/-/AL are ideal for following applications:

  • Mineral oils and synthetic pressure fluids and lubricants up to ISO VG 460 / 40 °C, also biodegradable oils
  • Aqueous oils and fluids, e. g. HFC fluids (water-glycol)
  • Oils and fluids with an extremely high dirt ingress

Optionally, they can also be combined with CJC Filter Inserts made of other filter materials to solve even difficult applications individually.

  • Oils and fluids with high potential to generate acids, e. g. HFD fluids, gas engine oils
  • Oils and fluids with high water content that has to be minimized in a short time, e. g. insulating oils
  • Oils and fluids with high acidification or high water content and simultaneous contamination with particles and oil ageing products

ADVANTAGES CJC OFFLINE FINE FILTER 27/-/AL

  • simultaneous removal of particles, water, oil ageing products and acid compounds from oil
  • independent and continuous fine and depth filtration in the off-line circuit or batch operation (24/7)
  • extremely high dirt and water holding capacity due to depth filtration – compared to surface filters from conventional filter systems contaminants are retained in the depth of the filter material
  • Filter material made of 100% renewable raw materials – environmentally friendly from insert production until their disposal
  • low energy consumption
  • simple installation, mounting and operation
  • low-maintenance, typically annually

The constant high oil cleanliness level permanently achieved by off-line fine filtration prolongs the lifetime of system components and oil by a factor 2 up to >10 and more!

Technical data

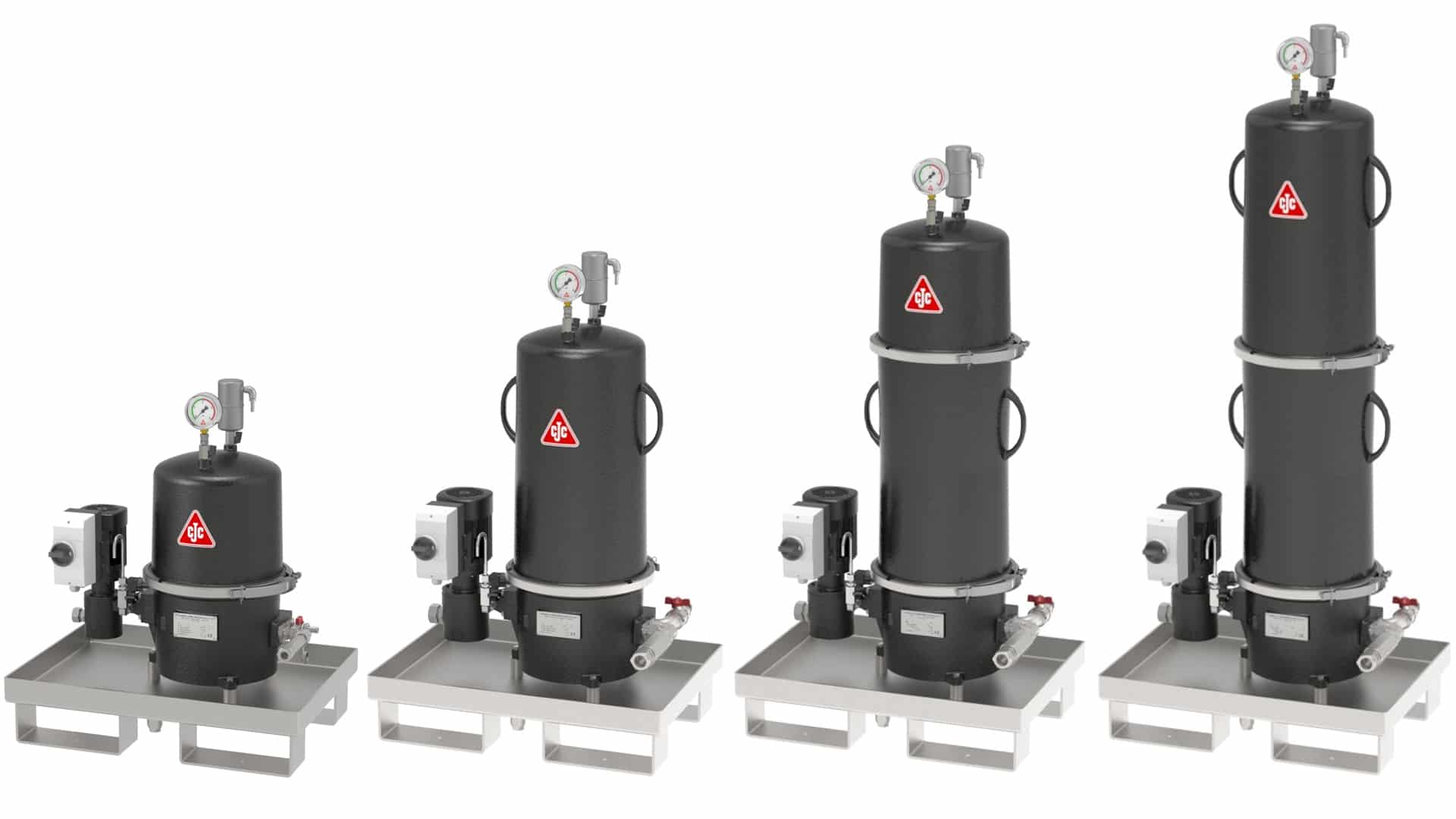

CJC Off-line Fine Filter 27/27/AL 27/54/AL 27/81/AL 27/108/AL
Oil volume, max. 3,000 l 5,000 l 7,000 l 10,000 l
Oil temperature, max. *) 130 °C
Material filter housing Aluminium
Pump flow application-oriented, max. 2,700 l/h
Power consumption, approx. 0.12 – 1.10 kW
Motor voltage DC / AC
Pressure drop, max. 2 bar
Net weight, approx. 65 kg 81 kg 94 kg 113 kg
Gross weight, approx. 82 kg 113 kg 149 kg 185 kg
Filter inserts 1 piece 2 pieces 3 pieces 4 pieces
Filtration capacity – CJC Fine Filter Insert 27/-
Filtration degree 3 down to 1 micron
Dirt holding capacity, approx. 2 kg
e. g. quenching oil up to 10 kg
4 kg
e. g. quenching oil up to 20 kg
6 kg
e. g. quenching oil up to 30 kg
8 kg
e. g. quenching oil up to 40 kg
Water holding capacity **) 0.9 – 1.3 l 1.8 – 2.6 l 2.7 – 3.9 l 3.6 – 5.2 l
Filter capacity – CJC Filter Insert type MS
Water holding capacity, approx. 1.5 l 3 l 4.5 l 6 l
Filter capacity – CJC Fine Filter Inserts Typ AM, AO, BE
Neutralization capacity **)
with 1,000 l fluid **)
0,03 – 0,15 0,05 – 0,30 0,08 – 0,46 0,10 – 0,61
Equipment
Standard
  • Sampling point for oil analyses
  • Pressure switch for monitoring the degree of saturation of filter inserts
  • Automatic bleeding and venting valve for quick filter insert replacement
  • Motor protection switch with integrated ON/OFF switch
  • Non-return valve to avoid a return flow
  • Base plate as drip pan
Optional
  • Leakage sensor
  • Electrical control
  • Preheater
  • Prefilter
  • Continuous air vent

*) Designs for other fluid conditions available on request.
**) Depends on filter insert type.
