How you can quickly and easily change the filter insert in your CJC® Oil Care System

Instruction: Replacement of CJC® Fine Filter Inserts — Type 27/-

Download instruction

Watch video tutorial

Warning triangle

Warning not "hot surfaces"

WARNING

HOT SURFACES

Piping and filter housings may contain hot fluid. Contact can cause burns.

Instruction note "Switch off system"

Switch off CJC® Oil-Care System.

Aerate CJC® Oil Care System.

Open bleeding and venting valve.

Version with automatich bleeding and venting valve:
Ensure that shutt-off valve is open.

Open venting screw

Version with venting screw:
Open venting screw.

Loosen permanent venting at filter base.

Version with permanent venting:
Loosen permanent venting at filter base.

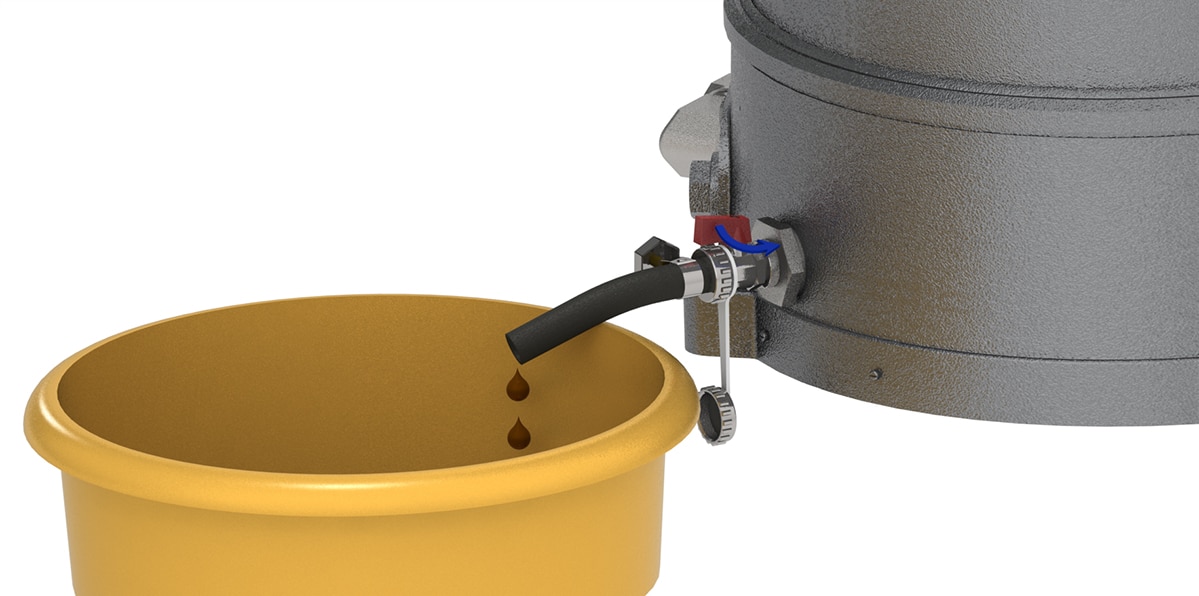

Drain CJC Oil-Care System 27/-

Drain CJC® Oil-Care System.

Close draining valve immediately after draining.

Open filter housing.

Open bleeding and venting valve.

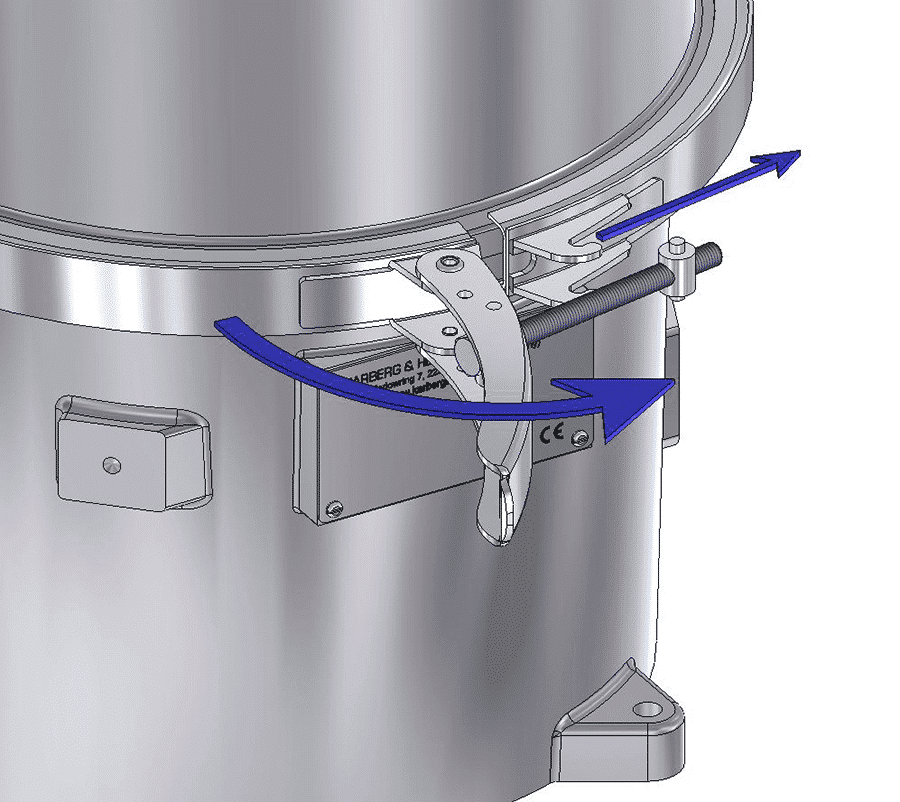

Version with clamp:
Open clamp.

Open venting screw

Version with top nut:
Loosen top nut with torque wrench (SW 41).

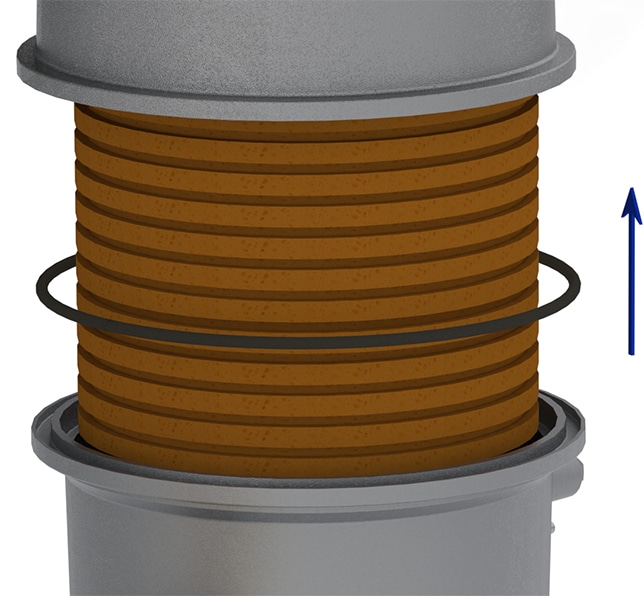

Dismantle filter dome, CJC Oil-Care System 27/-

Dismantle filter dome.

Make a visual inspection of the sealing

and if necessary, replace.

Loosen tightening nut, CJC Oil-Care System 27/-

Lossen tightening nut.

Compression spring, spring sleeve, CJC Oil-Care System 27/-

Remove compression spring and spring sleeve.

Do not damage the sealing edge.

Insert guide, CJC Oil-Care System 27/-

Keep the insert guides for re-use.

Only installed when using particular filter insert types.

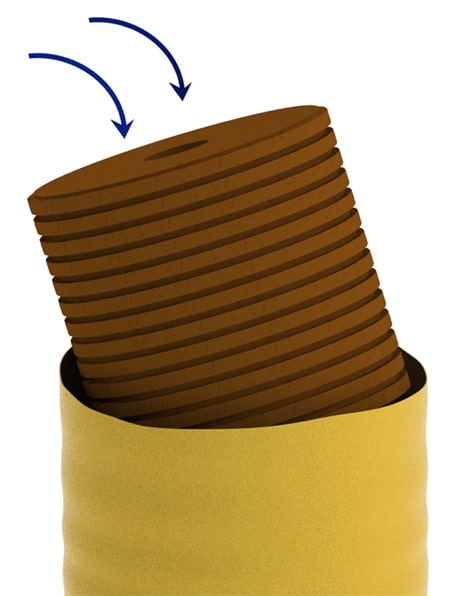

Dispose filter insert, CJC Oil-Care System 27/-

Dispose of contaminated CJC® Fine Filter Insert.

Open drain valve

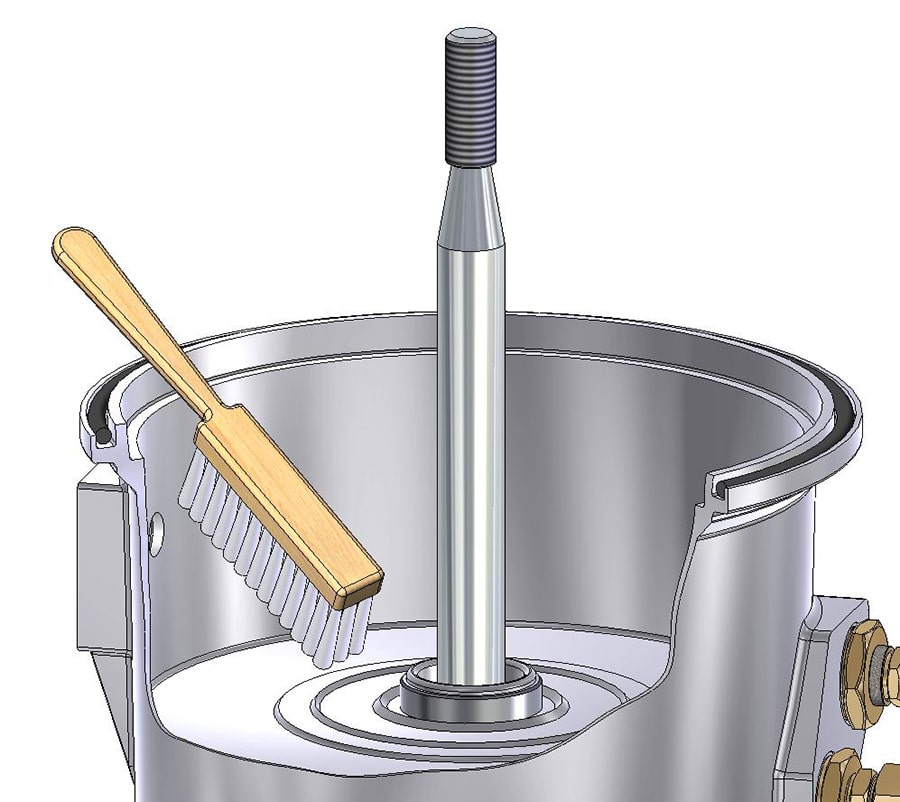

Clean filter bottom.

Without using solvent.

Insert guide, CJC Oil-Care System 27/-

Insert new CJC® Fine Filter Insert

as well as insert guide where appropriate.

Sealing, spring sleeve, CJC Oil-Care System 27/-

Make a visual inspection of the sealing int the spring sleeve

and if necessary, replace.

Filter insert replacement CJC Oil-Care System 27/-

Assemble spring sleeve, compression spring and tightening nut.

Tighten tightening nut, CJC Oil-Care System 27/-

Tighten tightening nut (12 Nm).

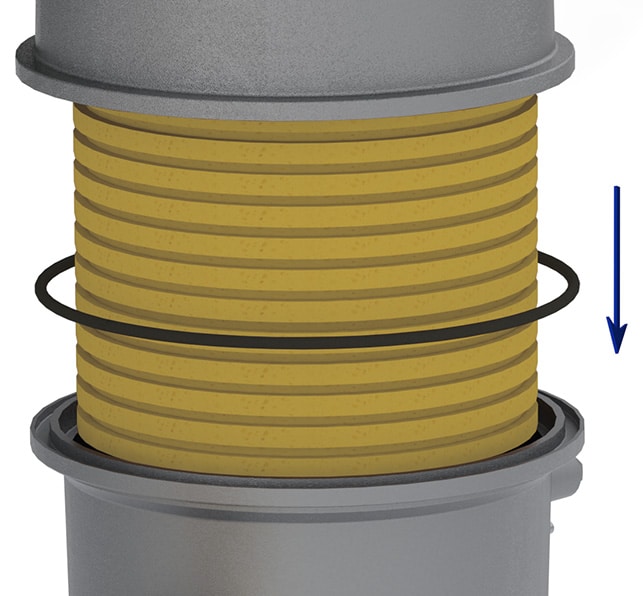

Place filter dome, replace CJC Fine Filter Insert

Place filter dome.

Close filter dome.

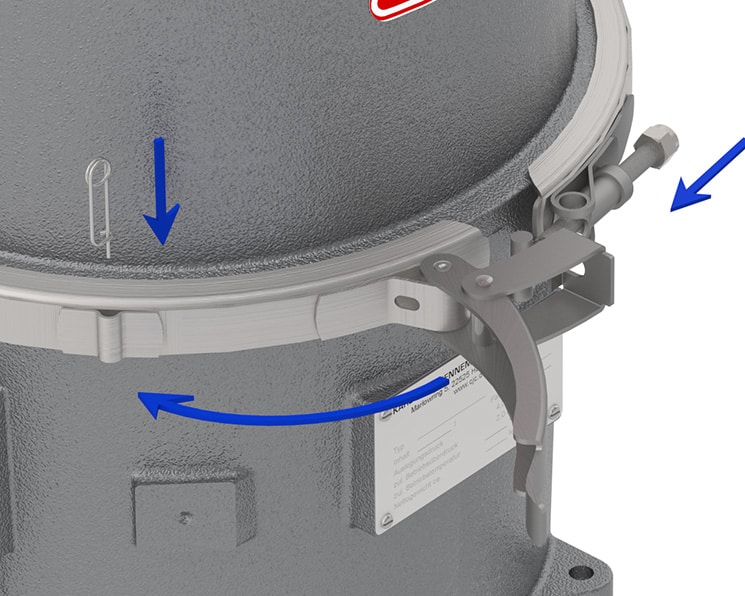

Close clamp, CJC Oil-Care System 27/-/Al

Version with clamp:
Close clamp.

Tighten top nut, CJC Oil-Care System

Version with top nut:
Tighten top nut with torque wrench (SW 41).

Instruction note "Switch off system"

Take CJC® Oil-Care System into operation.

Deaerate filter housing.

Open bleeding and venting valve.

Version with automatic bleeding and venting valve:
Leave shut-off valve open or, if necessary close.

Open bleeding and venting valve.

Version with venting screw:
Close venting screw.

Open bleeding and venting valve.

Version with permanent venting:
Reassemble permanent venting.

Video instruction for type 27/-/Al
