How you can automate dewatering and water level control of your transformer pits — documented and environmentally safe

SIPP Node: Your solution for transformer pit management 4.0

How you can automate dewatering and water level control of your transformer pits — documented and environmentally safe

SIPP Node: Your solution for transformer pit management 4.0

SIPP Node 500, 2000 and 5000

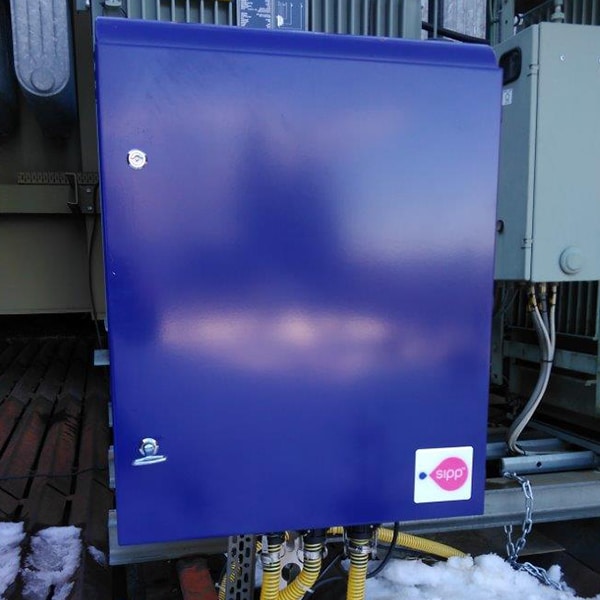

SIPP Node for dewatering and continuous water level control of transformer pits – produced in Sweden. The high-precision sensor for measuring the oil content in the water enables automated and environmentally safe discharges without needing on-site personnel. Fill levels and process data can be viewed anytime via online monitoring or sent to you electronically. This is the SIPP control unit. As experts in transformer pit management 4.0, our daily aspiration is: to ensure available catch basins and the highest level of environmental protection.

SIPP Node — Sizes:

Capacity, max.: 50 m³ per year

Measuring range oil content: 0—20 ppm

Measurement accuracy: +/- 1 ppm

Sampling frequency: Once per second

Temperature range: -40 to +60 °C

Flow rate, pump: 230 l/h

Supply voltage: 1 x 230 V (to be placed on site)

Frequency: 50/60 Hz

Current: 16 A

Class: IP 56

Communication: GPRS/3G with fixed IP addresses

Safety: SSL encryption

Net weight: 21.2 kg

Dimensions, W x L x H: 900 x 440 x 210 mm

CE marking: Yes

Admission: DIBt, TÜV Rheinland

Equipment:

Standard:

  • Pump with motor
  • Filter module
  • Measuring cell (infrared light)
  • Control module for output and return

Optional:

  • Signaling contact
    • Electrical connection and integration of the signaling contact is carried out by you as the operator
  • Prefilter

Capacity, max.: 200 m³ per year

Measuring range oil content: 0—20 ppm

Measurement accuracy: +/- 1 ppm

Sampling frequency: Once per second

Temperature range: -40 to +60 °C

Flow rate, pump: 4,000 l/h

Supply voltage: 1 x 230 V (to be placed on site)

Frequency: 50/60 Hz

Current, max.: 16 A

Class: IP 56

Communication: GPRS/3G with fixed IP addresses

Safety: SSL encryption

Net weight: 52 kg

Dimensions, W x L x H: 760 x 600 x 250 mm

CE marking: Yes

Admission: DIBt, TÜV Rheinland

Equipment:

Standard:

  • Pump with motor
  • Filter module
  • Measuring cell (infrared light)
  • Control module for output and return

Optional:

  • Signaling contact
    • Electrical connection and integration of the signaling contact is carried out by you as the operator
  • Prefilter

Capacity, max.: 500 m³ per year

Measuring range oil content: 0—20 ppm

Measurement accuracy: +/- 1 ppm

Sampling frequency: Once per second

Temperature range: -40 to +60 °C

Flow rate, pump: 5,000 l/h

Supply voltage: 1 x 230 V (to be placed on site)

Frequency: 50/60 Hz

Current, max.: 16 A

Class: IP 56

Communication: GPRS/3G with fixed IP addresses

Safety: SSL encryption

Net weight: 60 kg

Dimensions, W x L x H: 760 x 760 x 300 mm

CE marking: Yes

Admission: DIBt, TÜV Rheinland

Equipment:

Standard:

  • Pump with motor
  • Filter module
  • Measuring cell (infrared light)
  • Control module for output and return

Optional:

  • Signaling contact
    • Electrical connection and integration of the signaling contact is carried out by you as the operator
  • Prefilter

Customer cases

Real-world reports show the savings and benefits operators have achieved using their SIPP Nodes.

Write or call your personal contact person now

Do you have questions about the SIPP control unit and would you like to find out how you can integrate it optimally into your transformer station? Your catch basin is exposed to an exceptionally high risk of water ingress, and you would like to know more about the capacities of the SIPP Node? That is exactly what I am here for as your personal contact. Just call or e-mail.
