Filter Separator 27/-

The CJC Filter Separator 27/- is an offline filter which due to the unique combination of filter material and filtration type reduce the water content in oil simultaneously remove large amounts of particles, oil ageing products (oxidation products, varnish, sludge etc.) and acid compounds from the oil with extremely high efficiency.

For large amounts of water in the oil or continuous water ingress in the oil system the CJC Filter Separator 27/- is the appropriate solution for simultaneous drying and fine filtration of the oil.

CJC Fine Filter Inserts are the only filters in the worldwide that, combines with an exceptionally high dirt holding capacity, simultaneously minimize all four types of contamination and consist of 100 % renewable raw materials.

TYPICAL APPLICATIONS WITH HIGH WATER INGRESS

  • Lubrication oil (paper machines, turbines, thrusters, rolling mills etc.)
  • Hydraulic oil (presses, machine tools, mobile hydraulic etc.)

ADVANTAGES CJC FILTER SEPARATOR 27/-

  • longer lifetime for oil and components
  • less oil-related, cost-intensive machine failures
  • reduce water content in oil and simultaneously remove particles, oil ageing products and acid compounds
  • high filter efficiency by continuous fine and depth filtration combined with coalescing filtration, independent from the operation of the machine
  • constantly high oil cleanliness
  • longer service lifetime of the expensive in-line filters
  • optimum filtration performance by the specifically dimensioned pump

The constant high oil cleanliness level permanently achieved by off-line fine filtration prolongs the lifetime of system components and oil by a factor 2 up to > 10 and more!

Technical data
CJC Filter Separator 27/54 27/81 27/108
Oil volume, exemplary dimensioning
5,000 l 7,000 l 10,000 l
Design temperature 80 °C
Material filter housing Steel or stainless steel
Pump flow application-oriented, max. 1,000 l/h
Power consumption, approx. 0.12 – 0.75 kW
Design pressure 2 bar
Filter inserts 2 pieces 3 pieces 4 pieces
Filter capacity – CJC Fine Filter Insert 27/-
Filtration degree 3 down to 1 micron
Dirt holding capacity, approx. 4 kg 6 kg 8 kg
Water separation automatic
Equipment/Certification
Standard
  • Pump with motor
  • Electrical control
  • Automatic bleeding and venting valve for quick filter insert replacement
  • Pressure switch for monitoring the degree of saturation of filter inserts
  • Non-return valve to avoid return flow
  • Base plate
  • Sampling point
Optional
  • Leakage sensor
  • Divided filter dome
  • Preheater
  • Manual water separation
  • Design for high fluid temperatures and pressures
  • Filter housing according to ASME, with/without U-Stamp (see CJC Filter Separator P4)
Certification on request, e. g.
  • DNV-GL
  • Bureau Veritas
  • ABS
  • Lloyd’s Register

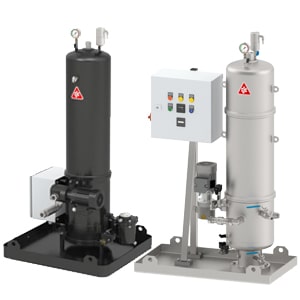

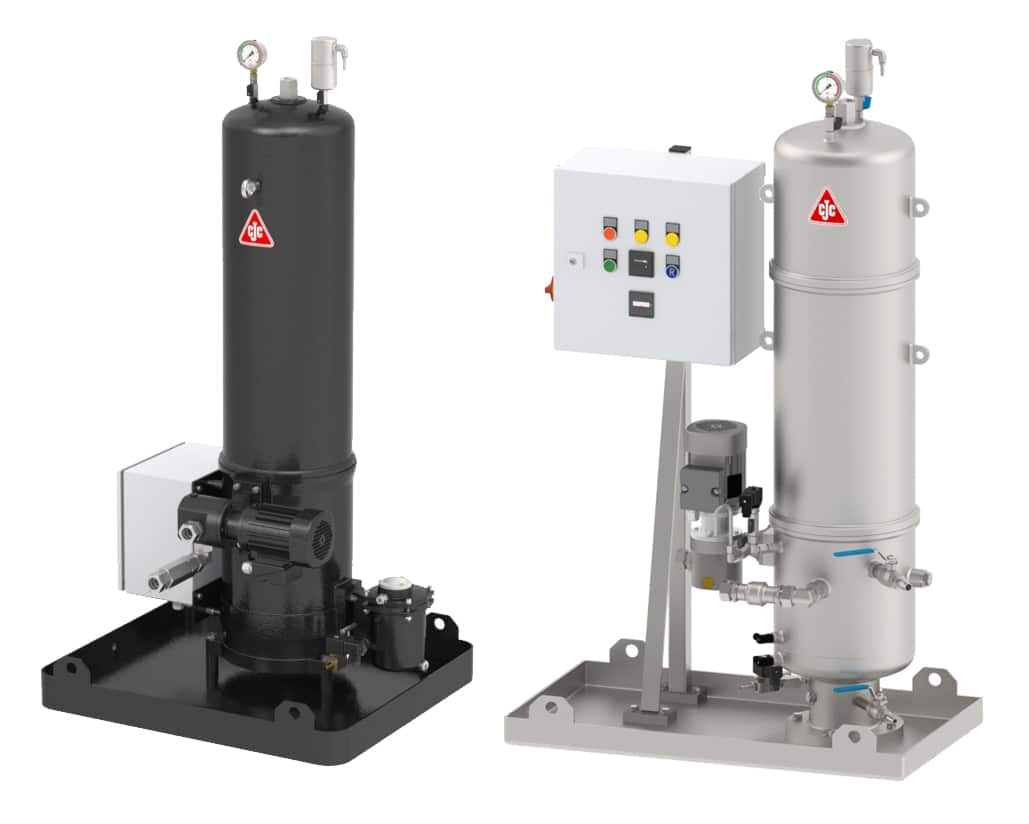

Filter Separator P1 and P4 27/-

Download product sheet

CJC FILTER SEPARATOR P1 27/-

PDF Icon

Download product sheet

CJC FILTER SEPARATOR P4 27/-

PDF Icon
Brochures

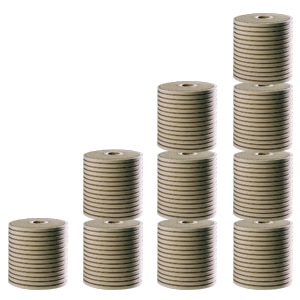

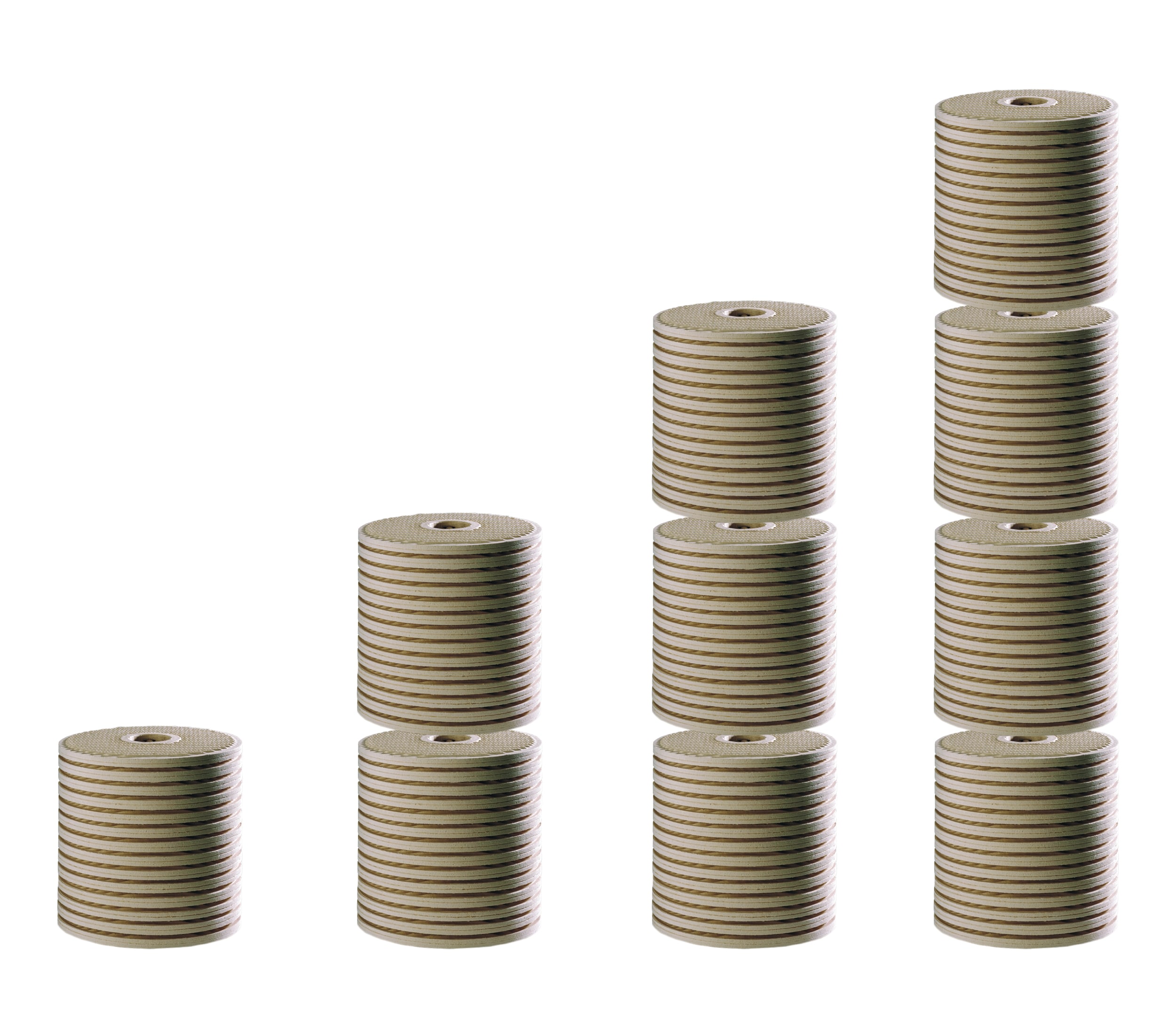

Fine Filter Inserts 27/-
