Condition monitoring for hydraulic oil and lube oil

The condition monitoring of hydraulic oil, lube oil, gear oil and other fluids via online monitoring and/or on-site is a fixed part of a professional oil care and oil analyses program. Regular oil analysis documents the oil condition and trend curves and allows the check whether the oil cleanliness required by the manufacturers of the sensitive components is achieved.

The continuous monitoring of contaminants (particles, water), wear debris, oxidation rate, total acid number (TAN) / total base number (TBN) and viscosity etc.:

  • send us information about the oil condition and machine condition
  • enable the detection of wear and leakages at the earliest and condition-based maintenance
  • enable control whether an oil change or an additional fine filtration in the off-line circuit is necessary
  • allow control of efficiency and performance of the in-line and off-line filter

Only with an oil cleanliness level that meets the application-specific requirements, it is possible to achieve the maximum performance, availability and lifetime of the machine or engine and minimize maintenance costs simultaneously.

The DIGI oil analysis sets in portable cases are ideal for quick condition monitoring and oil analysis on-site.

The CJC® Cyber-Physical-System, the CJC® Oil Contamination Monitor and the CJC® Condition Monitoring Unit are ideal for continuous condition monitoring and enable, due to individual implementable oil sensors, the optimum adjustment to machine- and application-specific requirements.

CJC Cyber-Physical System, Zustandsüberwachung

Cyber-Physical System CPS

Oil sensors for condition monitoring
  • Oil temperature (°C)
  • Pressure (bar)

Optional:

  • Oil moisture
  • Oil oxidation
  • or other customer-specific sensors
CJC Cyber-Physical System
Partikelzähler, Zustandsüberwachung

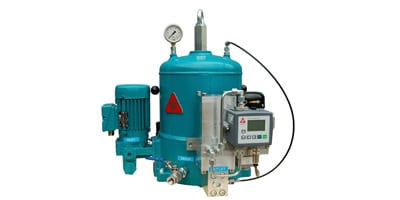

Oil Contamination Monitor OCM15

Particle counter and oil sensors for condition monitoring
  • Particle counter (ISO 4406)
  • Oil moisture (rF in %)
  • Oil temperature (°C)
CJC Oil Contamination Monitor
Condition Monitoring Unit, condition monitoring

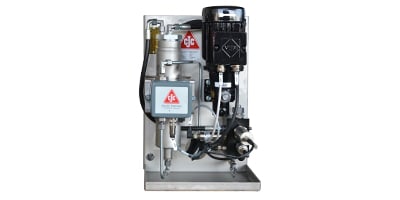

Condition Monitoring Unit CMU

Online-Monitoring for condition monitoring
  • Particle counter 4—250 µm (ISO 4406)
  • Wear debris 40—1.000 µm (ferrous/non-ferrous)
  • Oil moisture (rF in %)
  • Oil temperature (°C)
  • Oil oxidation
  • Pressure, filter inlet and outlet (bar)
CJC Condition Monitoring Unit CMU
Cloud-application, condition monitoring, hydraulic oil, lube oil

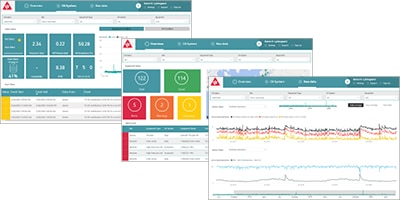

Cloud-application for condition monitoring

Monitoring and evaluation of sensor data

The cloud-application enables monitoring and automized evaluation of all sensor data as well as the configuration of limit values as an early alert system.

Cloud-application for oil sensors
Oil analyses set

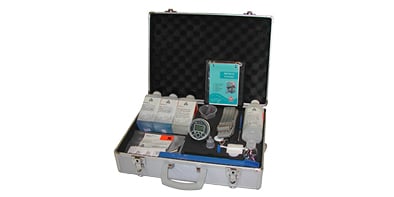

DIGI Field Kit EASYSHIP

Set for oil analyses on-site

Set for oil analysis on-site

  • water content
  • TBN (Total Base Number)
  • TAN (Total Acid Number)
  • Insolubles
  • Viscosity
DIGI Field Kit EASYSHIP
Oil analyse set water content

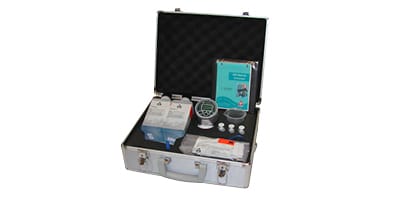

DIGI Water Kit EASYSHIP

Set for oil analyses on-site

Oil analyses set to measure the water content in oil.

DIGI Water Kit EASYSHIP
