Separating water from oil — fast, efficient and cost-effective

Desorber D40 from CJC®: Your solution for efficient water separation from oils and fluids

Desorber D40, desorption, separation of water from oil, water separation
Desorber D40, desorption, separation of water from oil, water separation

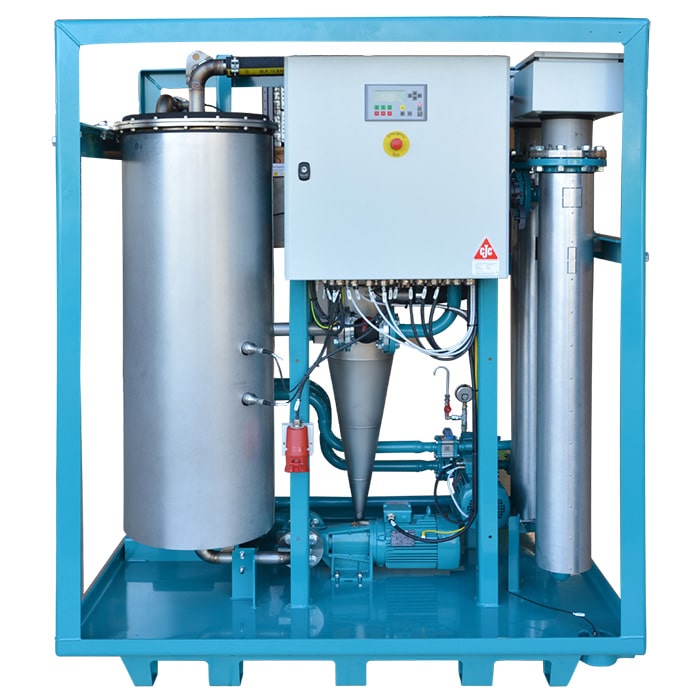

Desorber D40 — Separating water from oil

Desorbers D40 from CJC® dewater and dry your oil within a very short time — whether hydraulic oil, gear oil, lubricating oil, machining oil, leakage oil or quenching oil, and whether mineral based oil or synthetic fluid. Installation in a separate off-line circuit ior at a free-standing tank allows continuous water separation, independent of the operation of your machine. The CJC® Desorber D40 removes free, emulsified and dissolved water from the oil and minimizes the water content to 0.01% — even in emulsions with a water content of up to < 70% and highly viscous oils. Water separation by desorption is independent of additives and air content in the oil.

Fact is,

Water in oil changes the viscosity and worsens the lubricating effect of the oil. In addition, water accelerates oxidative ageing processes and decimates the additive package. As a result, the oil acidifies and sludge- and resin-like deposits form in the oil system and tank. Wear, corrosion, cavitation, and, if so, foam formation endanger the oil-lubricated components. Water also promotes the spread of bacteria, yeasts and fungi, which make tank and system cleaning difficult (health protection). All these factors shorten the service life of lubricant, components and machine.

Since even dissolved water in the oil can be released due to temperature and pressure fluctuations and is then initially emulsified, i.e. finely distributed in the oil, it is best practice to keep oils and fluids as dry as possible. Emulsified water is the most harmful water-in-oil state, as it circulates with the oil and unfolds its negative influences everywhere in the oil system.

Water in the oil is the second most common cause of failures and disturbances in an oil system.

Application areas & installation example Desorber D40

Especially in the paper, steel, plastics and metal processing industries, as well as in maritime applications, there is a high risk of water entry into the oil systems due to environmental and process conditions.

Installation principle desorber D40, separating water from oil, water separation

The pump in the oil inlet of the desorber D40 sucks in the oil. In the desorber chamber, the warm, moist oil meets a counterflow of cold, dry air. The oil heats the cold air, which allows it to absorb a lot of moisture from the oil (system pressure constantly low < 2 bar). In a subsequent process, the warm, moist air cools down again, and the water condenses.

  • Hydraulic and hydrostatic systems
  • Gearboxes and lubricating oil systems
  • Oil recovering:
    • Machining oil
    • Leakage oil
    • Quenching oil
  • Mineral oil
  • Bio oil / environmentally acceptable lubricants
  • Ester
  • PAG (Poly Alpha Glycol)
  • PAO (Poly Alpha Olefin)
  • other synthetic fluids

Features — Desorber D40

Desorber D40, desorption, separation of water from oil, water separation

Oil volume, dimensioning e.g.: 25.000 Litres

Installation: flexible, e.g. in the off-line circuit or on a free-standing tank

Viscosity range: up to ISO VG 1000

Water content in the oil, max.: 700,000 ppm (70%)

Water separation: water content permanently < 100 ppm (0.01%)

Supply voltage: 3 x 525 V/50—60 Hz, 3 x 400 V/50 Hz, 3 x 460 V/60 Hz

Power consumption: 7-25 kW

Current: 36 A

Conveying capacity (24/7): 1,400 litres per hour

System pressure (suction side), max.: 0.5 bar

Weight, approx.: 920 kg

Dimensions, L x W x H: 1,600 x 1,100 x 1,900 mm

Equipment:

Standard:

  • Pump with motor
  • electrical control with an integrated alarm system
  • Leakage monitoring
  • Sample point for oil or fluid analysis
  • automatic water separation

Optional:

  • Air, water or coolant cooling
  • Actuator kit (automatic closing of valves in oil inlet and outlet as soon as the CJC® desorber D40 stops)

Download product data sheet:

All sizes and variants — without and with depth filter

Desorber D40, desorption, separation of water from oil, water separation

That say our customers

Hydrostatische Systeme

“I am completely satisfied with the investment. Oil drying takes place very quickly and without machine downtime. Thus, we keep the production stable, have time to look for the failure cause, avoid the oil change and waste oil disposal, and maintain the oil quality.”

Read customer case

Head of Maintenance, Liebherr Components
Automobilhersteller

The Desorber works excellently in this application. I was impressed by the results and surprised how efficiently the Desorber dewatered the oil. The Desorber is easy to operate and is low-maintenance.”

Read customer case

Engineer, Quenching plant
gear oil maintenance, thruster, harbour tug

The CJC® Desorber allows us to operate the tug boat until the regular inspection in the dry dock in 6 months. The oil analysis results speak for themselves and substantiate the efficiency of the Desorber.

Read customer case

Regional Technical Manager, Harbour tug boat „VB PORNIC“
Gear oil filtration, thrusters, harbour tug

“It was only with the Desorber that the gear oil could finally be dried satisfactorily. Without CJC®, we would have had to change the 1,500 litres of gear oil soon. By avoiding the oil change, we were able to save EUR 4,890 (EUR 3.26/litre) – an important contribution not only in terms of budget but also in terms of resource savings. The excellent results convinced us, so we decided to purchase two identical Desorbers for our tug boats, “Bugsier 5” and “Bugsier 6”.

Read customer case

Technical Superintendent, Harbour tug boat „BUGSIER-4“
mv island scout,

“The Desorber is ideal for such operations because it works continuously while the vessel is at sea. The results are very satisfactory. The Desorber works very well and will further reduce the water content.”

Read customer case

Technical Inspector, Supply vessel „ISLAND SCOUT“

Write or call your regional contact person now

Let us start a conversation about your oil system, your fluid and the specific challenges. We dry every oil — mineral oils and synthetic fluids — and separate each emulsion. We are your experts if you need quick help with acute or steady water ingress.

Receive a personal consultation and a non-binding offer for a CJC® Desorber D40.

Write or call us.
