Fluid Care Unit

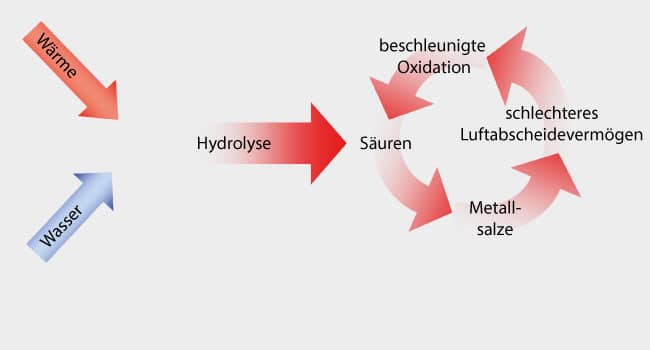

The CJC Fluid Care Unit is an off-line filter specially designed for filtration of phosphate esters (filtration degree 3 bis 1 micron (µm)). Phosphate ester is an HFD-fluid and belongs to the category of anhydrous, flame-resistant hydraulic fluids. HFD-fluids have the best hydraulic properties among the flame-resistant hydraulic fluids. High operating temperatures (> 80 °C) over longer periods, temperature peaks and water lead to hydrolysis in ester-based HFD-fluids, splitting the molecules into their primary constituents, the alcohol and acid moieties, which rapidly cause acidification.

THE MORE ADVANCED THE HYDROLYSIS,
THE FASTER THE PHOSPHATE ESTER DEGENERATES.

CONSEQUENCES OF HYDROLYSIS

  • Corrosion
  • Formation of sludge
  • clogged valves
  • reduced lubricity
  • decreased electrical resistance

SOLUTION CJC FLUID CARE UNIT

When filtering phosphate ester, care must be taken to remove not only particles but, above all, water and acids from the fluid.

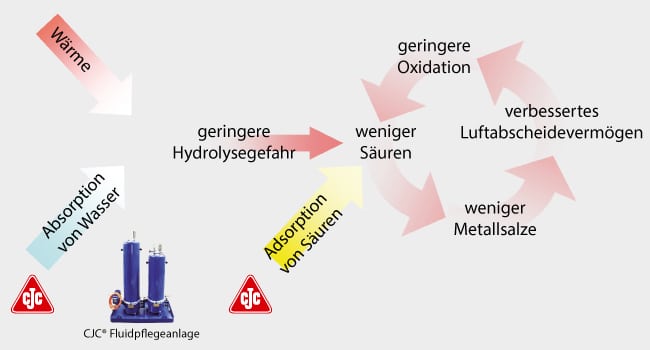

The CJC Fluid Care Unit absorbs water from phosphate ester and in so doing, reduces the risk of hydrolysis. Furthermore, the CJC Fluid Care Unit adsorbs existing acids and thus retard the catalytic degradation process of phosphate ester molecules. The phosphate ester is pumped through two filter housings (2-stage filtration). In the first stage, acid compounds in the oil are neutralized using a CJC Filter Insert made of aluminium oxide, ion exchange resins or fuller’s earth. In the second stage, water and particles are removed from the oil using a CJC Fine Filter Insert made of cellulose (filtration degree: 3 to 1 micron (µm).

TYPICAL APPLICATIONS

  • Turbines, hydraulic control systems
  • Oil systems, which are load by heat such as in
    • Steel mills
    • Paper mills
    • Power plants

ADVANTAGES CJC FLUID CARE UNIT

  • Reduction of the acid number (TAN down below 0.1)
  • Reduction of the risk of corrosion
  • Increase in fluid resistance (up to 200 Ωm for ester)
  • Lifetime prolongation (machines/components)
  • longer fluid replacement intervals

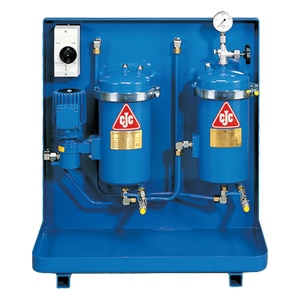

CJC Fluid Care Unit for filtration of phosphate ester
