Filter Separators

CJC Filter Separators combine fine and depth filtration with coalescing filtration for separation of free water from oil and diesel. Simultaneously, CJC Filter Separators remove particles, oil ageing products and acid compounds from oil and diesel. CJC Filter Separators are ideal for the use in the industrial, energy, mining as well as marine and offshore sector.

Coalescing filtration is suitable for separation of free water from mineral oils and synthetic fluids with a good demulsification time (< 20 minutes). For optimum coalescing performance, the solid and soft contaminants (particles and oil ageing products) consisting in the oil are removed by fine filtration. The especially for CJC Filter Separators designed CJC Fine Filter Inserts function as a fine filter and simultaneously as coalescer. During the passage through the mesh of cellulose microscopic water parts combine to droplets. In a subsequent process, the water droplets are separated and deposited in a settling area.

TYPICAL APPLICATIONS – OIL AND DIESEL

  • Diesel (engines, storage tanks, bunker vessels/stations)
  • Lubrication oil (paper machines, turbines, rolling mills, thrusters etc.)
  • Hydraulic oil (cranes, excavators, presses etc.)
  • Quenching oil (oil from washing bath (skimmed oil)

OIL CARE – ADVANTAGES

  • simultaneous removal of particles, water and oil ageing products as well as neutralization of acids
  • constantly high oil cleanliness
  • no oil- or diesel-related, cost-intensive machine respectively engine failures
  • longer lifetime of oil and components
  • longer service lifetime of the expensive in-line filters
  • high filter efficiency due to continuous fine and depth filtration in combination with coalescing filtration, independent of the operation of the machine/engine
  • optimum filtration performance by the specifically dimensioned pump

DIESEL CARE – FURTHER ADVANTAGES

  • Removal of microorganisms (bacteria, fungi, yeasts)
  • longer lifetime for engines, injection nozzles, pistons, cylinders and fuel pumps
  • Minimization of soot deposits within the engine and combustion residues in the engine lubrication oil
  • improved engine performance and fewer emissions
  • Protection against sludge accumulation and the resulting malfunctions
  • avoiding of extensive tank cleanings

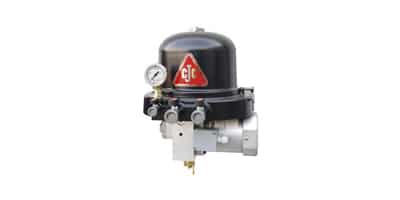

CJC Filter Separator 15/12

Filter Separator 15/12

Oil volume, max: 500 Litres
Diesel volume flow, max: 120 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 550 g

Water separation:
manual

Separators for oil
Separators for diesel

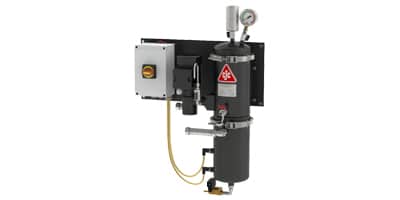

CJC Filter Separator 15/25

Filter Separator 15/25

Oil volume, max: 1,500 Litres
Diesel volume flow, max: 180 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 1.1 kg

Water separation:
automatic or manual

Separators for oil
Separators for diesel

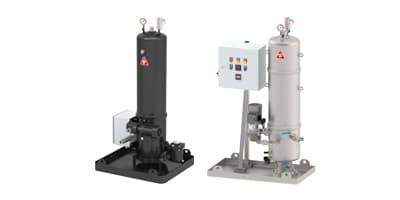

CJC Filter Separator P1 and P4 27/-

Filter Separator 27/-

Oil volume, max.: 10,000 Litres
Diesel volume flow, max.: 1,500 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 4 kg, 6 kg or 8 kg

Water separation:
automatic or manual

Separators for oil
Separators for diesel

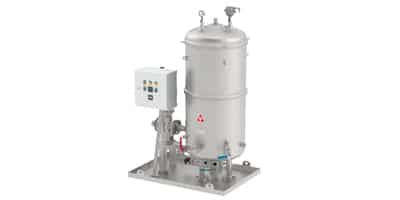

CJC Filter Separator 327/108

Filter Separator 327/-

Oil volume, max.: 30,000 Litres
Diesel volume flow, max.: 4,500 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 12 kg, 18 kg or 24 kg

Water separation:
automatic or manual

Separators for oil
Separators for diesel

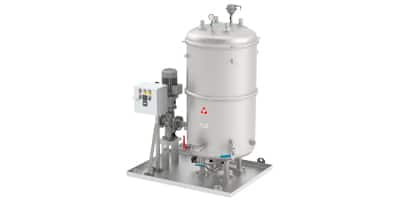

CJC Filter Separator 427/108

Filter Separator 427/-

Oil volume, max.: 40,000 Litres
Diesel volume flow, max.: 6,000 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 16 kg, 18 kg or 24 kg

Water separation:
automatic or manual

Separators for oil
Separators for diesel

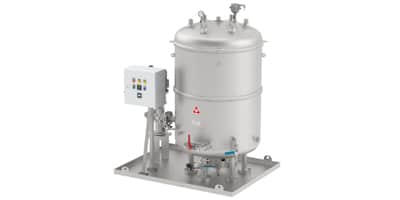

CJC Filter Separator 727/108

Filter Separator 727/-

Oil volume, max.: 70,000 Litres
Diesel volume flow, max.: 11,900 l/h

Filtration degree:
3 down to 1 micron

Dirt holding capacity:
approx. 28 kg, 42 kg, 56 kg or 84 kg

Water separation:
automatic or manual

Separators for oil
Separators for diesel
