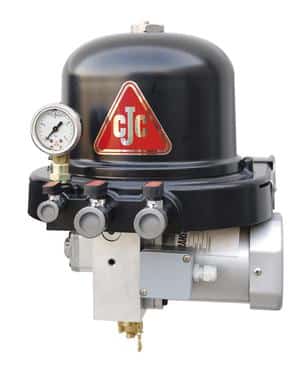

Off-line Fine Filter 15/12

CJC Off-line Filters 15/12 are fine filters (3 µm absolute, 1 µm nominal) for small oil systems up to max. 500 Litres, which simultaneously remove particles, water, oil degradation products and acid compounds from oil with high efficiency. Due to the combination of filtration type (depth filtration) and filter material (cellulose), CJC Off-line Fine Filters 15/12 offer an extremely high dirt and water holding capacity.

CJC Fine Filter Inserts made of cellulose are specially designed and optimized for various applications. CJC Off-line Fine Filters 15/12 are ideal for fine filtration of hydraulic oil, lubrication oil and gear oil:

  • Mineral oils and synthetic pressure fluids and lubricants up to ISO VG 460 / 40 °C, also biodegradable oils
  • Aqueous oils and fluids, e. g. HFC fluids (water-glycol)

ADVANTAGES CJC OFF-LINE FINE FILTER 15/12

  • simultaneous removal of particles, water, oil ageing products and acid compounds from oil
  • independent and continuous fine and depth filtration in the off-line circuit or batch operation (24/7)
  • extremely high dirt and water holding capacity due to depth filtration — compared to surface filters from conventional filter systems contaminants are retained in the depth of the filter material
  • Filter material made of 100% renewable raw materials — environmentally friendly from insert production until their disposal
  • low energy consumption
  • simple installation, mounting and operation
  • low-maintenance, typically annually

The constant high oil cleanliness level permanently achieved by off-line fine filtration prolongs the lifetime of system components and oil by a factor 2 up to >10 and more!

Technical data
CJC Off-line Fine Filter 15/12
Oil volume, max. 500 l
Oil temperature, max. *) 80 °C
Material filter housing Aluminium
Pump flow application-oriented, max. 120 l/h
Power consumption, approx. 0.06 kW
Motor voltage DC / AC
Pressure drop, max. 1.8 bar
Net weight, approx. 9 kg
Gross weight, approx. 11 kg
Filter inserts 1 piece
Filter capacity – CJC Fine Filter Inserts 15/12
Filtration degree 3 down to 1 micron
Dirt holding capacity, approx. 550 g
Water holding capacity, approx. 220 – 250 ml
Equipment
Standard
  • Sampling point for oil analyses

*) Designs for other fluid conditions available on request.
**) Depends on filter insert type.

Off-line Fine Filter 15/12
