Manual: Filter insert replacement in CJC® Fine Filter Unit HDU 27/-

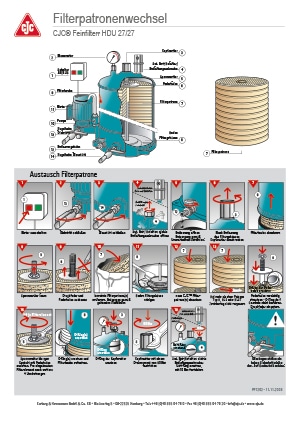

Download Manual

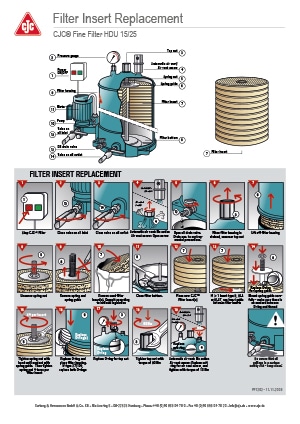

Manual filter insert replacement

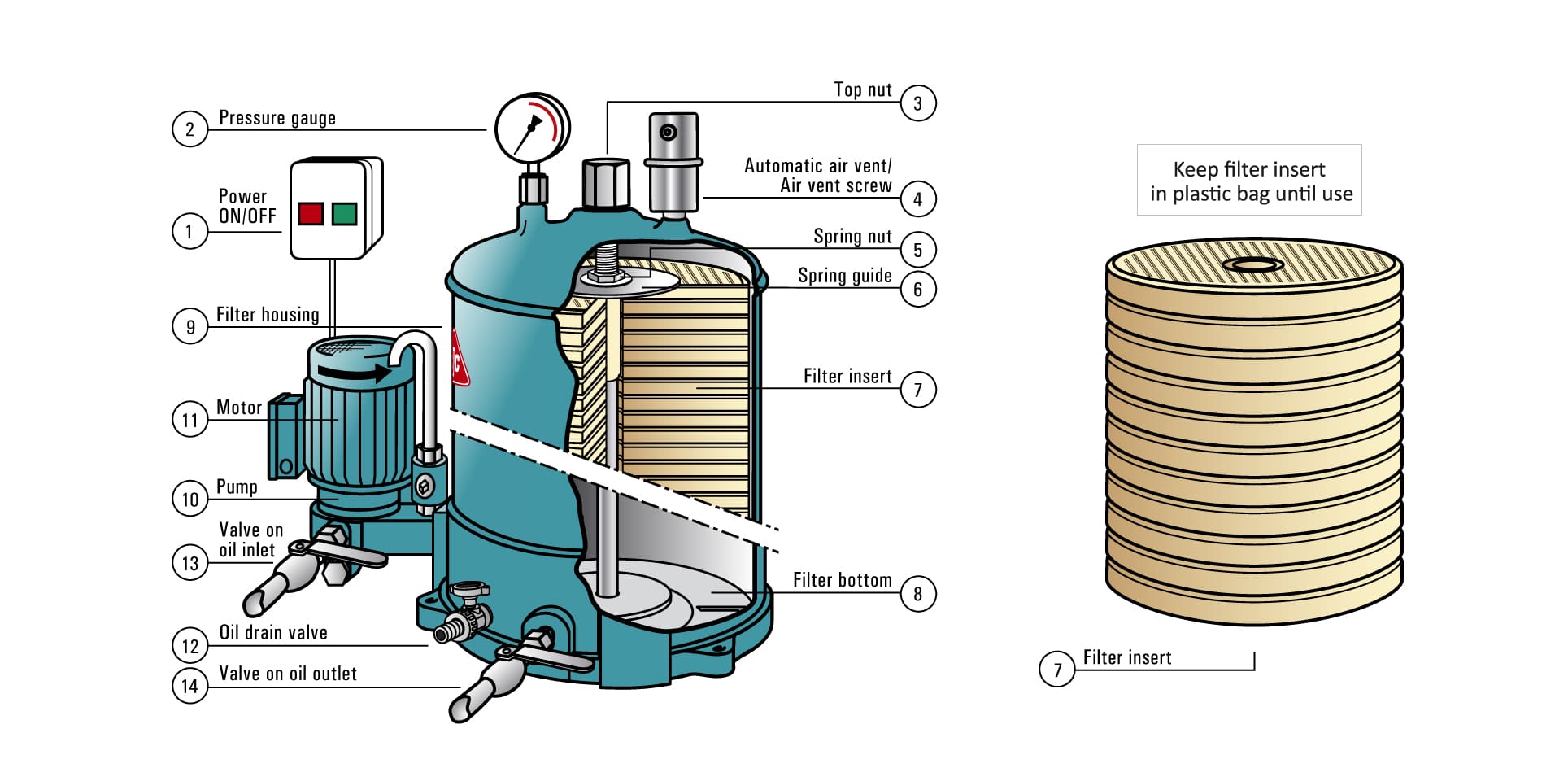

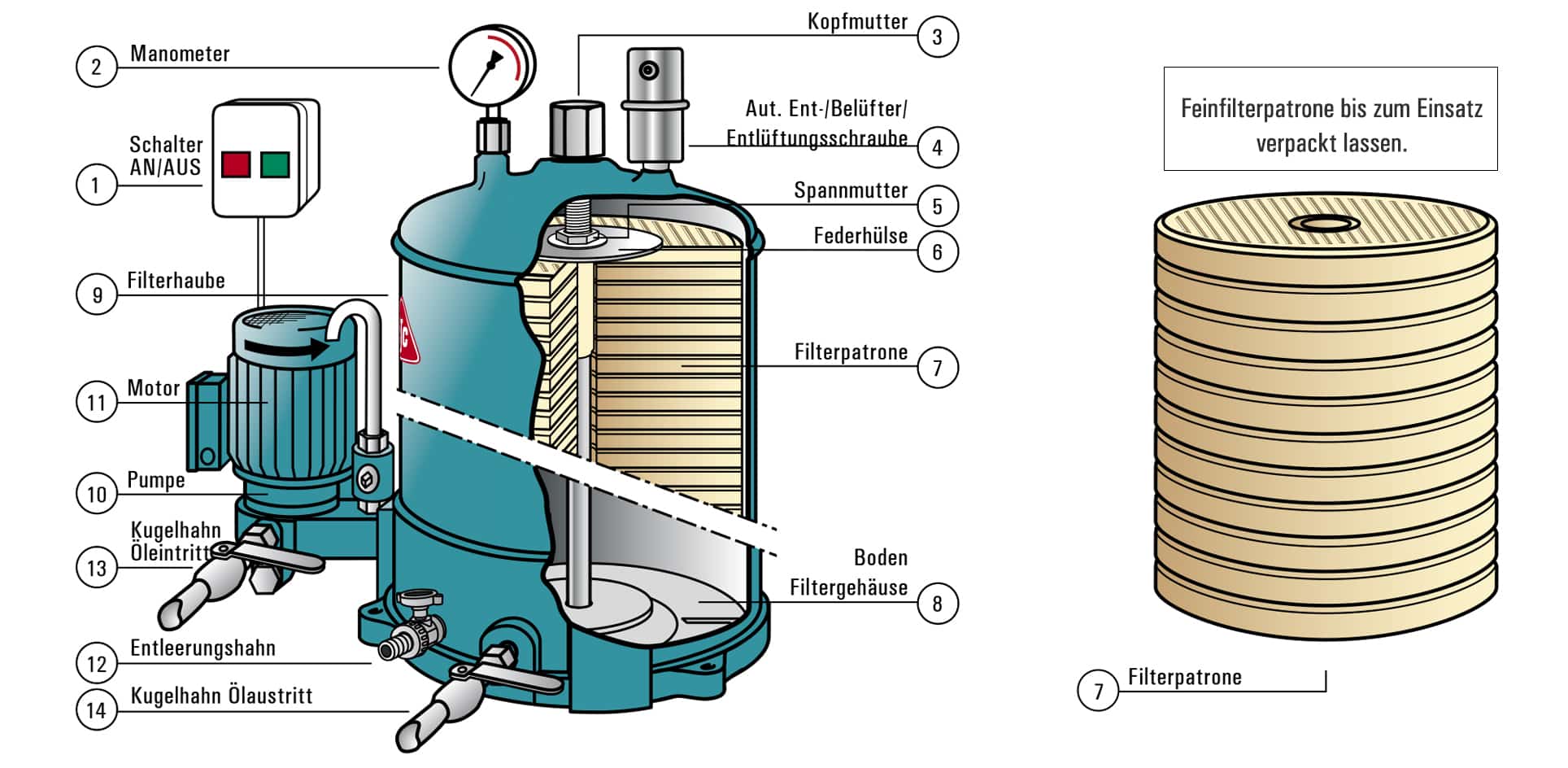

HDU 27/27, cross-section, filter insert replacement

Warning triangle

Warning not "hot surfaces"

WARNING

HOT SURFACES

Piping and filter housings may contain hot fluid. Contact can cause burns.

Stop CJC® Fine Filter HDU 15/25

Switch off CJC® Oil-Care System.

Close valve on oil inlet

Close valve on oil inlet.

Close valve on oil inlet

Close valve on oil outlet.

Aerate CJC® Oil-Care System.

Open venting screw, replace CJC Filter insert 27/27 in HDU 27/-

Version with venting screw:
Open venting screw.

Version with permanent venting:
Lossen top nut (3).

Open bleeding and venting valve.

Version with automatich bleeding and venting valve:
Ensure that shutt-off valve is open.

Drain CJC Oil-Care System 15/25

Drain CJC® Oil-Care System.

Close draining valve immediately after draining.

Loosen top nut.

Loosen top nut.

Lift filter dome

Lift filter dome and replace o-ring.

Loosen tightening nut.

Lossen tightening nut.

Remove compression spring and spring sleeve.

Remove compression spring and spring sleeve.

Do not damage the sealing edge.

Dispose filter inserts 27/27

Dispose of contaminated CJC® Fine Filter Insert.

According to environment precautions!

Clean filter housing

Clean filter bottom.

Without using solvent.

Insert new CJC Fine Filter Insert

Insert new CJC® Fine Filter Insert

as well as insert guide where appropriate.

Assemble spring sleeve, compression spring and tightening nut.

Assemble spring sleeve, compression spring and tightening nut.

Replace o-ring for spring guide.

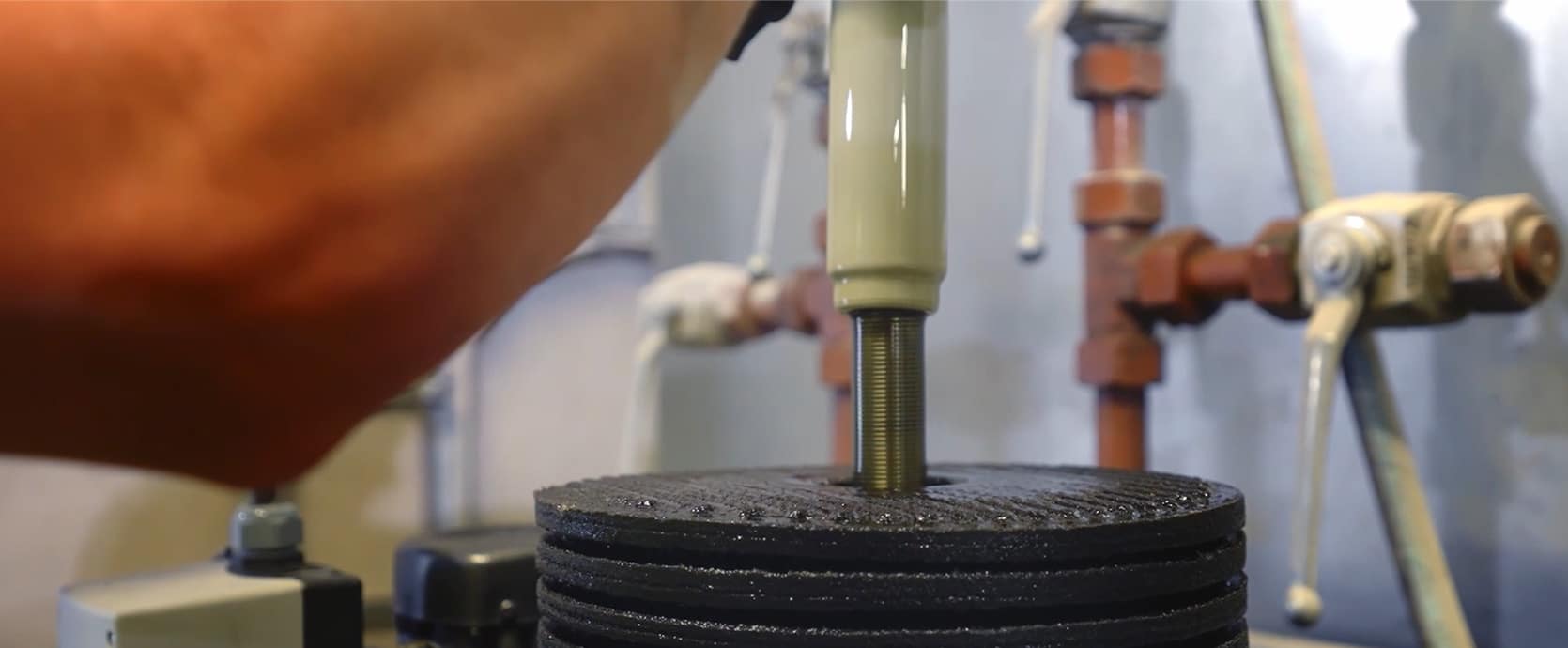

Tighten spring nut, filter insert replacement HDU 27/27

Tighten spring nut

until contact with spring guide. Then tighten spring nut 4 turns per filter insert.

Place filter dome, HDU 27/27

Place filter dome.

Tighten top nut, HDU 27/27

Replace o-ring of top nut.

Tighten top nut with a torque of 90 Nm.

Close venting screw, HDU 27/27

Replace usit-ring of venting screw and tighten venting screw with a torque of 10 Nm.

Open valve on oil outlet

Open valve on oil inlet.

Open valve on oil inlet

Open valve on oil inlet.

Open venting screw

Open venting screw.

Version with permanent venting:
step doesn’t be applied.

Close bleeding and venting valve

Version with automatic bleeding and venting valve:
Leave shut-off valve open or, if necessary close.

Take CJC® Oil-Care System into operation

Take CJC® Oil-Care System into operation.
