Minimize water in oil to < 100 ppm — within the shortest time

Desorber D10 from CJC®: Your solution for efficient oil drying

Desorber D10, oil drying, mineral oil, synthetic fluids, emulsions
Desorber D10, oil drying, mineral oil, synthetic fluids, emulsions

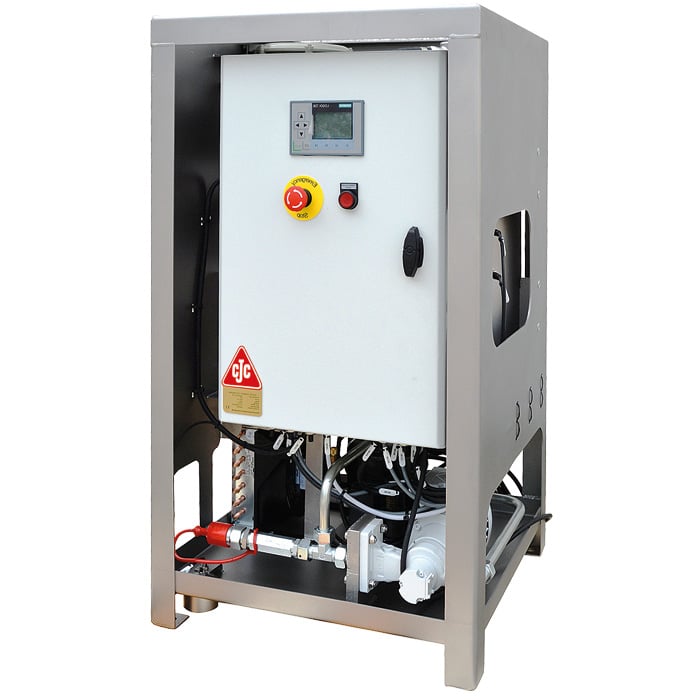

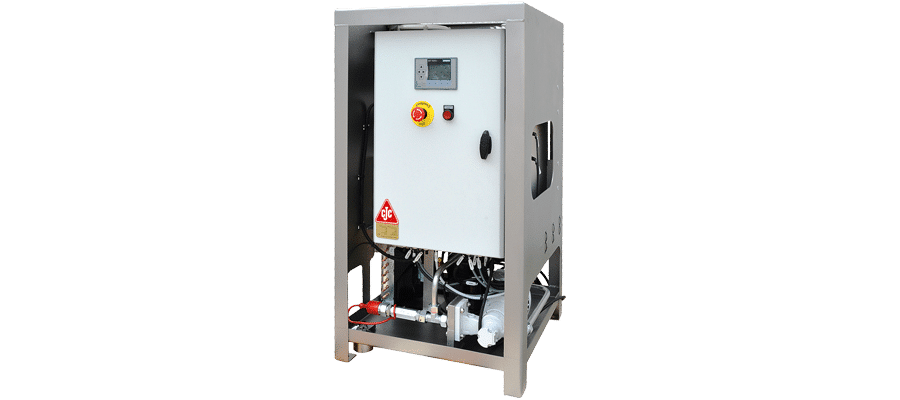

Desorber D10 for oil drying

Desorbers D10 from CJC® dry your oil within a very short time — whether hydraulic oil, gear oil, lubricating oil, machining oil, leakage oil or quenching oil, and whether mineral oil or synthetic fluid. Due to the installation in a separate off-line circuit or on a free-standing tank, the oil drying takes place continuously and independently of the operation of your machine. The CJC® Desorber D10 removes free, emulsified and even dissolved water from the oil and lowers the water content to < 100 ppm — even when you have stable emulsions with a water content of 700,000 ppm. Oil drying by desorption is independent of viscosity, additives and air content in the oil.

Fact is,

water in oil negatively influences the viscosity and lubricating effect of the oil. In addition, water accelerates oil degradation processes and leads to rapid and early additive loss. The acid number in the oil increases and varnish and sludge occur in the oil system and tank. Wear, corrosion, cavitation, and the increased risk of foam endanger the machine components. Water is also the staple food for bacteria, yeasts and fungi, which spread unhindered and make tank cleaning difficult (health protection). All these factors shorten the service life of oil, components and machine.

Since even dissolved water in the oil can be released due to temperature and pressure fluctuations and is then initially emulsified, i.e. finely distributed in the oil, it is best practice to keep oils and fluids as dry as possible. Emulsified water is the most harmful water-in-oil state, as it circulates with the oil and unfolds its negative influences everywhere in the oil system.

Water in the oil is the second most common cause of failures and disturbances in an oil system.

Application areas & installation example Desorber D10

Especially in the paper, steel, plastics and metal processing industries, as well as in maritime applications, there is a high risk of water entry into the oil systems due to environmental and process conditions.

Installation principle desorber D10, oil drying, mineral oil, synthetic fluids, emulsions

The pump in the oil inlet of the desorber D10 sucks in the oil. In the desorber chamber, the warm, moist oil meets a counterflow of cold, dry air. The oil heats the cold air, which allows it to absorb a lot of moisture from the oil (system pressure constantly low < 2 bar). In a subsequent process, the warm, moist air cools down again, and the water condenses.

  • Hydraulic and hydrostatic systems
  • Gearboxes and lubricating oil systems
  • Oil recovering:
    • Machining oil
    • Leakage oil
    • Quenching oil
  • Mineral oil
  • Bio oil / environmentally acceptable lubricants
  • Ester
  • PAG (Poly Alpha Glycol)
  • PAO (Poly Alpha Olefin)

Features — Desorber D10

Desorber D10, oil drying, water separation by desorption

Oil volume, dimensioning e.g.: 1,500 Litres

Installation: flexible, e.g. in the off-line circuit or on a free-standing tank

Design temperature: 60 °C

Viscosity range: up to ISO VG 320

Water content in the oil, max.: 700,000 ppm (70%)

Water separation: water content permanently < 100 ppm (0.01%)

Supply voltage: 1 x 208 V/60Hz, 1 x 230 V/50—60 Hz, 3 x 400/50Hz or 3 x 440—480 V/60 Hz

Power consumption: 2.6 kW at 208 V and 230 V, 3 kW at 400 V or 440—480 V

Current: 12.5 A at 208 V, 11.3 A at 230 V, 4.3 A at 400 V, or 3.9 A at 440-480 V

Pump flow (24/7): 45—55 Litres per hour

System pressure (oil inlet), max.: 0.5 (PV) or 3.5 bar (PVM)

Weight, approx.: 125 kg

Dimensions, L x B x H: 570 x 570 x 1,000 mm

Equipment:

Standard:

  • Pump with motor
  • electrical control with an integrated alarm system
  • Leakage monitoring
  • Sample point for oil or fluid analysis
  • automatic water separation

Download product data sheet:

All sizes and variants — without and with depth filter

Desorbers, oil drying, mineral oil, synthetic fluids, emulsions

That say our customers

Hydrostatische Systeme

“I am completely satisfied with the investment. Oil drying takes place very quickly and without machine downtime. Thus, we keep the production stable, have time to look for the failure cause, avoid the oil change and waste oil disposal, and maintain the oil quality.”

Read customer case

Head of Maintenance, Liebherr Components
Automobilhersteller

The Desorber works excellently in this application. I was impressed by the results and surprised how efficiently the Desorber dewatered the oil. The Desorber is easy to operate and is low-maintenance.”

Read customer case

Engineer, Quenching plant
gear oil maintenance, thruster, harbour tug

The CJC® Desorber allows us to operate the tug boat until the regular inspection in the dry dock in 6 months. The oil analysis results speak for themselves and substantiate the efficiency of the Desorber.

Read customer case

Regional Technical Manager, Harbour tug boat „VB PORNIC“
Gear oil filtration, thrusters, harbour tug

“It was only with the Desorber that the gear oil could finally be dried satisfactorily. Without CJC®, we would have had to change the 1,500 litres of gear oil soon. By avoiding the oil change, we were able to save EUR 4,890 (EUR 3.26/litre) – an important contribution not only in terms of budget but also in terms of resource savings. The excellent results convinced us, so we decided to purchase two identical Desorbers for our tug boats, “Bugsier 5” and “Bugsier 6”.

Read customer case

Technical Superintendent, Harbour tug boat „BUGSIER-4“
mv island scout,

“The Desorber is ideal for such operations because it works continuously while the vessel is at sea. The results are very satisfactory. The Desorber works very well and will further reduce the water content.”

Read customer case

Technical Inspector, Supply vessel „ISLAND SCOUT“

Write or call your regional contact person now

Let us start a conversation about your system, your oil, and the specific challenges. We are your experts for oil drying whether with acute or permanent water ingress — and even with highly viscous oils and stable emulsions.

Receive a personal consultation and a non-binding offer for a CJC® Desorber D10.

Write or call us.
